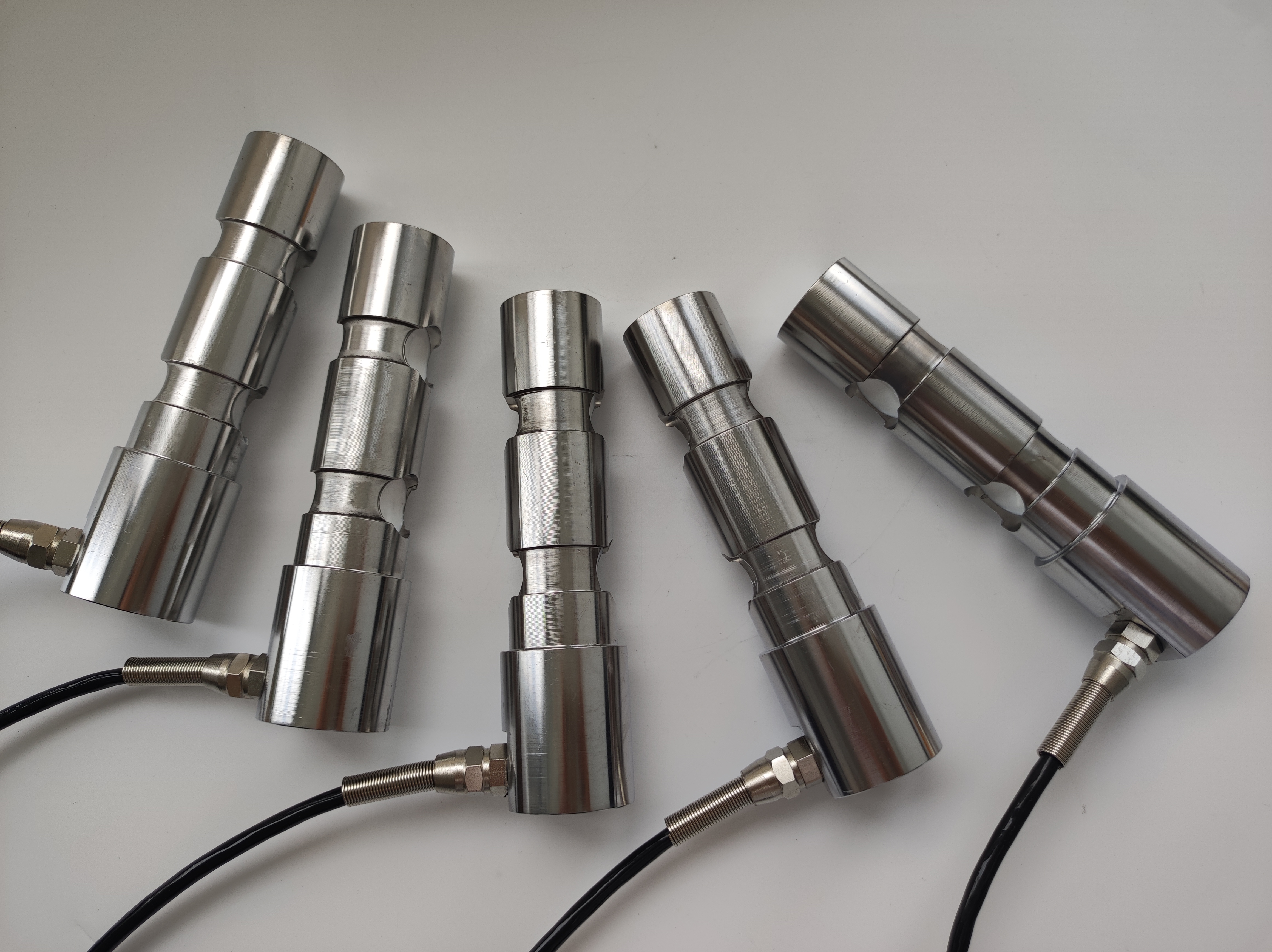

Stainless steel Shackle pin lifting Measuring Force Clevis Load Pin load cell

Name: Stainless steel Shackle pin lifting Measuring Force Clevis Load Pin load cell
Brand: Ruijia
Price: 35 USD

Quality Stainless steel Shackle pin lifting Measuring Force Clevis Load Pin load cell wholesale

Brand Name : Ruijia

Model Number : RJ-9910

Place of Origin : Shannxi, China

MOQ : 1pc

Price : USD 35/piece

Payment Terms : T/T, L/C

Supply Ability : 1000 Piece/Pieces per Month

Delivery Time : Within one Weeks

Packaging Details : carton box

Usage : Weighing

Theory : Strain Gauge Deformation

Capacity : 5 t

Sensitivity : 1.0±0.1 mV/V

Accuracy : ≤±0.02

Creep（5min) : ±0.1 %FS

Input resistance : 380±20 Ω

Output Resistance : 350±5 Ω

Temperature Effects on Span : ±0.1 %FS/10℃

Temperature Effect on Zero : ±0.1 %FS/10℃

Material : Alloy Steel

Contact Now

Stainless steel Shackle pin lifting Measuring Force Clevis Load Pin load cell

Product Description

Stainless steel Shackle pin lifting Measuring Force Clevis Load Pin load cell

Dimension

Technical Parameter:

Capacity	t	1～5
Sensitivity	mV/V	1.0±0.1
Accuracy	%FS	±0.5
Creep(15min)	%FS	±0.1
Input Resistance	Ω	380±20
Output Resistance	Ω	350±5
Insulation Resistance	M Ω	≥5000(100VDC)
Zero Balance	%FS	±2
Temperature Effects on Span	%FS/10℃	±0.1
Temperature Effect on Zero	%FS/10℃	±0.1
Rated Temperature Range	℃	-10～+60
Operating Temperature Range	℃	-20～+80
Proposed Excitation Voltage	V	5～12
Allowed Excitation Voltage	V	18
Safe Overload	%FS	150
Ultimate Overload	%FS	200
Protection		IP65
Cable specification	mm	Ф5
Cable length	m	3m
Material		Alloy Steel

Application Solution

Stainless steel Shackle pin lifting Measuring Force Clevis Load Pin load cell

Production Process

Company Profile

---------------------------------------------------------------

Stainless steel Shackle pin lifting Measuring Force Clevis Load Pin load cell

At Ruijia, our sensors service a wide range of different applications across various industries.

We will continues to provide robust products, custom engineering, thoughtful design, and tireless support to any industry requiring electronic weighing or force measurement.

With more than 30 years in the industry, it’s likely that Ruijia has already created a solution for your needs. Take a look at these industries as well as the case studies within to get a feel for what we are able to offer. Even if your application doesn’t neatly into one of the following industries, Ruijia will design a system you can rely on.
